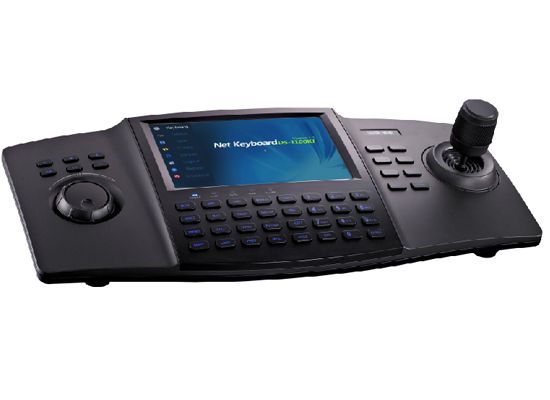

DS-1100KI – Network Keyboard

Kategoriler: Klavye

Control mode
Control mode:	\|	IP-based
Audio Input/Output
Line In:	\|	1-ch, 3.5mm connector (2.0Vp-p, 1kΩ）
Audio Out:	\|	1-ch, 3.5mm connector (Linear, 600Ω)
External interface
Communication interface:	\|	1 RJ45 10M/100M/1000M adaptive Ethernet interface; 1 RS-232 interface; 1 RS-485 interface; 1 USB2.0 interface (for data storage and device upgrade)
General
LCD screen:	\|	7” TFT LCD monitor with touch panel
Joystick:	\|	3-axis joystick
Power supply:	\|	12VDC
Power consumption:	\|	≤15W
Working temperature:	\|	-10°C ~ +55°C
Working humidity:	\|	10%~90%
Size:	\|	110mm (H)×193mm (W) ×435mm (D)
Weight:	\|	2Kg

Kurulum Dosyaları	9340_ECEdocumentFCCKeyboardFCC.pdf 9340_ECEdocumentIPC+keyboardKeyboard.pdf 9340_E土耳其网站keyboardSpecofDS1004KIKeyboard.pdf 2013111818161539101.pdf 3999_DS1100KITR.PDF 3999_ECEdocumentFCCKeyboardFCC.pdf 3999_ECEdocumentIPC+keyboardKeyboard.pdf User Manual of DS-1100KI V1.0_20110112.pdf 3999_E土耳其网站keyboardSpecofDS1100KIKeyboard.pdf
