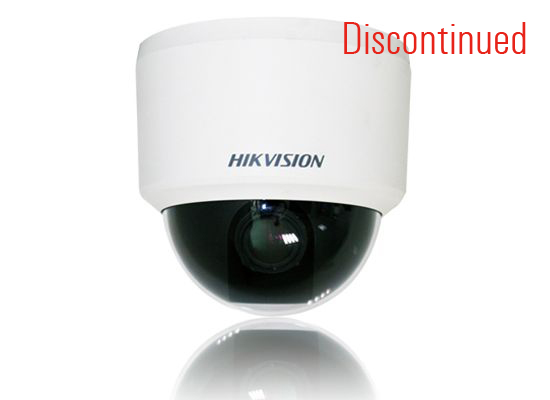

DS-2CC575P(N)-A – Dome Camera
| Kamera | ||
|---|---|---|
| Görüntü Sensörü: | | | 1/3” SONY CCD |
| İşaret Sistem: | | | PAL/NTSC |
| Etkin Piksel: | | | PAL:752(H)x582(V); NTSC:768(H)x494(V) |
| Minimum Aydınlatma: | | | Color: 0.02 Lux @ (F1.2, AGC ON), 0.00012 Lux @ (F1.2, AGC ON, sensitivity × 256) Color: 0.027 Lux @ (F1.4, AGC ON), 0.00016 Lux @ (F1.4, AGC ON, sensitivity × 256) B/W: 0.002 Lux @ (F1.2, AGC ON), 0.000007 Lux @ (F1.2, AGC ON, sensitivity × 256) B/W: 0.0027 Lux @ (F1.4, AGC ON), 0.0000095 Lux @ (F1.4, AGC ON, sensitivity × 256) |
| Objektif Zamanı: | | | 1/50(1/60)s to 1/100,000s |
| Lens: | | | 2.8 – 11 mm @ F1.4 (2.5 – 6 mm optional) Angle of view: 97° – 24° (2.8 – 11 mm) |
| Lens Montaj : | | | φ14 |
| Otomatik Iris: | | | DC Drive |
| Ayarlama Aralık: | | | Pan: 0 – 355°, Tilt: ± 80°, Rotation: 0 – 150° |
| Gündüz ve Gece: | | | IR cut filter with auto switch |
| Yatay Çözünürlükte: | | | 540TVL (Color), 600TVL (B/W) |
| Senkronizasyon: | | | Internal/Power synchronization |
| Video Çıkışı: | | | 1Vp-p Composite Output (75Ω/BNC); Test Monitor OUT [1Vp-p Composite Output (75Ω/BNC),Device Line] |
| S / N Oranı: | | | More than 50dB |
| Menü | ||
| Kamera ID: | | | On/Off (15 letters, adjusted position) |
| Otomatik Kazanç: | | | Low/Middle/High/Off |
| D / N Modu: | | | Auto/Day/Night |
| Otomatik Beyaz Dengesi: | | | Auto trace WB1/Auto trace WB2/Manual/Auto Control |
| Gizlilik Maskesi: | | | On/Off, maximum 8 zones |
| Hareket Algılama: | | | ON/Off |
| BLC: | | | On/Off |
| Anti-flicker: | | | On/ Off |
| Dil: | | | English/Chinese |
| Video Parametreleri: | | | Gamma Correction, Digital Zoom, Digital Noise Reduction, POS/NEG ,Mirror, Resolution, Sharpness, Y, C, Blemish Detection |
| Genel | ||
| Çalışma Sıcaklığı: | | | -10 °C – 60 °C (14 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Güç Kaynağı: | | | 12 V DC ± 10%, 24 V AC ± 10% |
| Güç Tüketim: | | | 3 W (Max. 10 W with IR cut filter on) |
| Boyutlar: | | | Φ 116 × 112.7 mm (φ 4.57” × 4.44”) |
| Ağırlık: | | | 400 g (0.88 lbs) |
| Kurulum Dosyaları |
|---|
