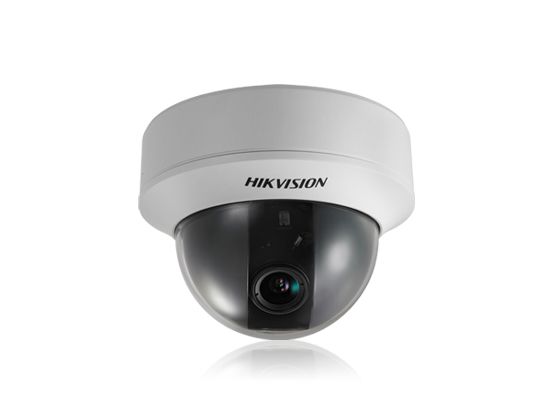

DS-2CC51A1/51A5/51A7P(N)-VF – 700TVL Vari-focal Dome Camera
| Kamera | ||
|---|---|---|
| Görüntü Sensörü: | | | 1/3″ SONY Super HAD CCD II |
| İşaret Sistem: | | | PAL/NTSC |
| Etkin Piksel: | | | PAL: 976 (H) × 582 (V) NTSC: 976 (H) × 494 (V) |
| Minimum Aydınlatma: | | | Color: 0.001 Lux @ (F1.2, AGC ON), 0.0001 Lux @ (F1.2, AGC ON, sensitivity × 512) B/W: 0.0001 Lux @ (F1.2, AGC ON), 0.00001 Lux @ (F1.2, AGC ON, sensitivity × 512) |
| Objektif Zamanı: | | | 1/50(1/60)s to 1/100,000s |
| Lens: | | | 2.8 – 12 mm @ F1.4 |
| Lens Montaj : | | | φ14 |
| Otomatik Iris: | | | DC Drive |
| Ayarlama Aralık: | | | Pan: 0 – 355°, Tilt: 0 – 180°, Rotation: 0 – 355° |
| Gündüz ve Gece: | | | IR cut filter with auto switch |
| Geniş Dinamik Aralık: | | | 75dB |
| Senkronizasyon: | | | Internal/Power synchronization |
| Video Çıkışı: | | | 1Vp-p Composite Output (75Ω/BNC); Test Monitor OUT [1Vp-p Composite Output (75Ω/BNC),Device Line] |
| S / N Oranı: | | | More than 62 dB |
| Menü | ||
| Kamera ID: | | | On / off (16 letters, adjusted position) |
| Otomatik Kazanç: | | | Low/Middle/High/Off |
| D / N Modu: | | | Auto/Day/Night |
| Otomatik Beyaz Dengesi: | | | Auto trace WB1/Auto trace WB2/Manual/Auto Control |
| Gizlilik Maskesi: | | | On / off, maximum 12 zones |
| Hareket Algılama: | | | ON/Off |
| BLC: | | | Area/Value/Off |
| Tutulma: | | | On / off |
| Dil: | | | English/Chinese/Japanese/German/French/Russian/Portuguese/Spanish |
| Ölü Pixel Algılama: | | | Yes |
| Fonksiyon: | | | SMART IR, Eclipse, Digital Noise Reduction, Sharpness, Brightness, Saturation, Resolution, Electronic image stabilization, Digital Zoom, Mirror, Defect Pixel Correction, auto-iris correction |
| Alan: | | | Indoor Standard , Indoor Backlight , Outdoor, Low illumination , Customize |
| Genel | ||
| Çalışma Sıcaklığı: | | | -10 °C – 60 °C (14 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Güç Kaynağı: | | | 12 V DC ± 10%, 24 V AC ± 10% |
| Güç Tüketim: | | | Max. 4 W(Max. 4.5 W with IR cut filter on) |
| Boyutlar: | | | Φ 136 × 101 mm (Φ 5.35” × 3. 98”) |
| Ağırlık: | | | 800 g (1.76 lbs) |
| Kurulum Dosyaları |
|---|
