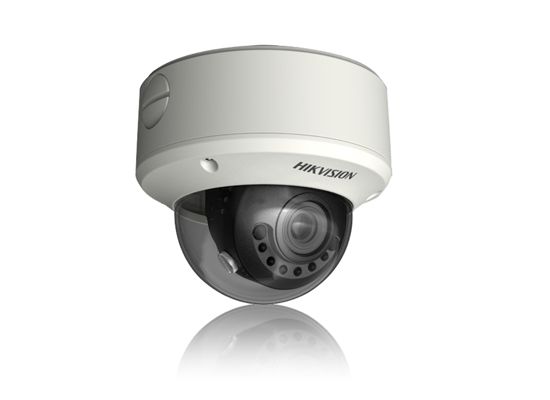

DS-2CC51A5P(N)-VPIR(H) – Vandal-proof & Weatherproof Low Illumination Dome Camera
| Kamera | ||
|---|---|---|
| Görüntü Sensörü: | | | 1/3” SONY CCD |
| İşaret Sistem: | | | PAL/NTSC |
| Etkin Piksel: | | | PAL: 976 (H) × 582 (V) NTSC: 976 (H) × 494 (V) |
| Minimum Aydınlatma: | | | 0.001 Lux @ (F1.2, AGC ON), 0.0001 Lux @ (F1.2, AGC ON, sensitivity × 512), 0 Lux with IR 0.0014 Lux @ (F1.4, AGC ON), 0.00014 Lux @ (F1.4, AGC ON, sensitivity × 512), 0 Lux with IR |
| Objektif Zamanı: | | | 1/50(1/60)s to 1/100,000s |
| Lens: | | | 2.8 – 12 mm @ F1.4 Angle of view: 80° – 27.2° |
| Lens Montaj : | | | φ14 |
| Otomatik Iris: | | | DC Drive |
| Ayarlama Aralık: | | | Pan: 0 – 355°, Tilt: 0 -80°, Rotation: ± 90° |
| Gündüz ve Gece: | | | IR cut filter with auto switch |
| Yatay Çözünürlükte: | | | 700 TVL |
| Senkronizasyon: | | | Internal/Power synchronization |
| Video Çıkışı: | | | 1Vp-p Composite Output (75Ω/BNC); Test Monitor OUT [1Vp-p Composite Output (75Ω/BNC),Device Line] |
| S / N Oranı: | | | More than 62 dB |
| Menü | ||
| Kamera ID: | | | On/Off(16 letters, position adjustable) |
| Otomatik Kazanç: | | | Low/Middle/High/Off |
| D / N Modu: | | | Auto/Day/Night |
| Otomatik Beyaz Dengesi: | | | Auto trace WB1/Auto trace WB2/Manual/Auto Control |
| Gizlilik Maskesi: | | | On / off, maximum 12 zones |
| Hareket Algılama: | | | ON/Off |
| BLC: | | | Area/Value/Off |
| Anti-flicker: | | | On/ Off |
| Dil: | | | English/Chinese |
| Fonksiyon: | | | SMART IR, Digital Wide Dynamic Range, Eclipse, Digital Noise Reduction, Sharpness, Brightness, Saturation, Resolution, Electronic image stabilization, Digital Zoom, Mirror, Defect Pixel Correction |
| Alan: | | | Indoor Standard , Indoor Backlight , Outdoor, Low illumination , IR Standard , Customize |
| Genel | ||
| Çalışma Sıcaklığı: | | | -10 °C – 60 °C (14 °F – 140 °F) Humidity 90% or less (non-condensing) -H: -40 °C – 60 °C (-40 °F – 140 °F) with heater and fan on |
| Güç Kaynağı: | | | 24 VAC ± 10%, 12 VDC ± 10% (-H: 24 VAC ± 10%) |
| Güç Tüketim: | | | Max. 13 W -H: Max. 25 W |
| Darbe Koruma: | | | IEC60068-2-75 test, Eh, 50J; EN50102, up to IK10. |
| Weather Proof: | | | IP66 |
| Isıtıcı: | | | -H: support |
| IR Aralık: | | | -IR: approx 20 to 30 meters |
| Boyutlar: | | | Φ 145.3 × 124.2 mm (Φ 5.72” × 4.89”) |
| Ağırlık: | | | 2000 g (4.40 lbs) |
| Kurulum Dosyaları |
|---|
