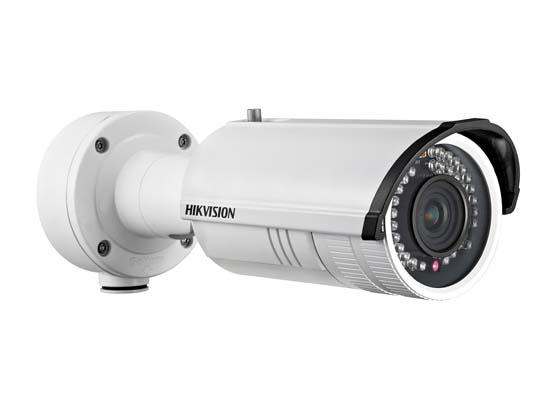

DS-2CD4212F-I(Z)(H)(S) – 1.3MP Low-light IR Bullet Camera
| Kamera | ||
|---|---|---|
| Görüntü Sensörü: | | | 1/3″ Progressive Scan CMOS |
| İşaret Sistemi: | | | PAL/NTSC |
| Minimum Aydınlatma: | | | 0.01 Lux @ (F1.2, AGC ON), 0 lux with IR 0.014 Lux @ (F1.4, AGC ON), 0 lux with IR |
| Objektif Hızı: | | | 1 s to 1/100,000 s |
| Lens: | | | No -Z: 2.8-12mm @ F1.4, angle of view: 98.4°-30.2° 8-20mm @ F1.6, angle of view: 35.5°-14.7°(optional) -Z: 2.8-12mm @ F1.4, angle of view: 98.4°-30.2° 8-32mm @ F1.4, angle of view: 27.8°-9.1°(optional) |
| Lens Kurulumu: | | | φ14 |
| Oto-iris: | | | DC drive |
| Gündüz & Gece: | | | IR cut filter with auto switch |
| Geniş Dinamik Aralık: | | | Digital WDR |
| Dijtal Gürültü Azaltma: | | | 3D DNR |
| Odak: | | | Motorized VF lens(-Z model) |
| Sıkıştırma Standardı | ||
| Video Sıkıştırma: | | | H.264/MPEG4/MJPEG |
| Video Bit Hızı: | | | 32Kbps~16Mbps |
| Ses Sıkıştırma: | | | -S: G.711/G.722.1/G.726/MP2L2 |
| Üçüncü Akım: | | | Yes |
| Görüntü | ||
| Maksimum Çözünürlük: | | | 1280 × 1024 |
| Çerçeve Hızı: | | | 50Hz: 25fps (1280 × 1024),25fps (1280 × 960), 50fps (1280 × 720) 60Hz: 30fps (1280 × 1024),30fps (1280 × 960), 60fps (1280 × 720) |
| Üçüncül Akış: | | | Independent with Main Stream and Sub Stream, up to 50Hz: 25fps (1280 × 1024) 60Hz: 30fps (1280 × 1024) |
| Görüntü Ayarlama: | | | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: | | | Support |
| HLC: | | | Support |
| Akıllı Buğu Giderme: | | | Support |
| EIS: | | | Support |
| ROI: | | | Support |
| Resim Yerleşimi: | | | 128 × 128, BMP 24bit, zone configurable |
| Ağ | ||
| Ağ Depolama: | | | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger: | | | Line crossing detection, Intrusion detection, Defocus detection, Scene change detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protokoller: | | | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour(SIP optional) |
| Güvenlik: | | | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| Sistem Uyumluluğu: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Arayüzü | ||
| İletişim Arayüzü: | | | 1 RJ45 10M / 100M Ethernet interface |
| Dahili Depolama: | | | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB |
| Genel | ||
| Çalışma Sıcaklığı: | | | -30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing) -H: -40 °C – 60 °C (-40 °F – 140 °F) with smart heater on |
| Güç Kaynağı: | | | 12 VDC ± 10%, PoE (802.3af) |
| GÜç Tüketimi: | | | Max. 11 W -Z/-H: Max. 12W |
| Weather Proof: | | | IP66 |
| IR Aralık: | | | 2.8-12mm: Approx. 20 to 30 meters; 8-20mm/8-32mm: Approx. 50 to 80 meters |
| Boyutlar: | | | 98 × 105 × 328.8 mm (3.86” × 4.13” × 12.94”) |
| Ağırlık: | | | 2000 g (4.41 lbs) |
| NOT: | | | * “-S” series support 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface |
| Kurulum Dosyaları |
|---|
