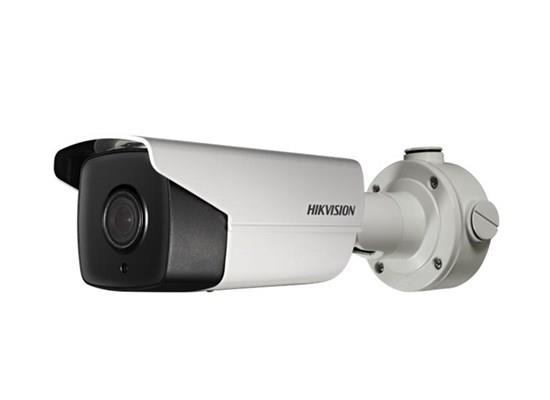

DS-2CD4B16FWD-IZ(S) – 1.3 MP Low Light Smart Bullet Camera
| Kamera | ||
|---|---|---|
| Görüntü Sensörü: | | | 1/3″ Progressive Scan CMOS |
| Minimum Aydınlatma: | | | Color: 0.005 Lux @ (F1.2, AGC ON), 0.007 Lux @ (F1.4, AGC ON), 0 Lux with IR B/W: 0.0005 Lux @ (F1.2, AGC ON), 0.0007 Lux @ (F1.4, AGC ON), 0 Lux with IR |
| Objektif Hızı: | | | 1 s – 1/100,000 s |
| Slow shutter: | | | Support |
| Lens: | | | 2.8 – 12 mm F1.4, horizontal angle of view 98.4° – 30.2° |
| Lens Kurulumu: | | | φ14 |
| Oto-iris: | | | DC drive |
| Ayarlanan Aralık: | | | Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° |
| Geniş Dinamik Aralık: | | | 120 dB |
| Dijtal Gürültü Azaltma: | | | 3D DNR |
| Sıkıştırma Standardı | ||
| H.264 Türü: | | | Baseline Profile/Main Profile/High Profile |
| Video Bit Hızı: | | | 32Kbps~16Mbps |
| Ses Bit Hızı: | | | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Üçüncü Akım: | | | Yes |
| Görüntü | ||
| Maksimum Çözünürlük: | | | 1280×960 |
| Çerçeve Hızı: | | | 50Hz: 50fps (1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 60fps (1280 × 960, 1280 × 720, 704 × 480, 640 × 480) |
| Ana Akış: | | | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240) |
| Üçüncül Akış: | | | 50Hz: 25fps (1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240) |
| Görüntü İyileştirme: | | | BLC/HLC/3D DNR/Defog/EIS |
| Görüntü Ayarlama: | | | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Bölgesel Kırpma: | | | Support |
| ROI: | | | Support 4 fixed region for each stream, and dynamic face tracking |
| Resim Yerleşimi: | | | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| Gündüz / Gece Anahtarı: | | | Auto/Schedule/Triggered by Alarm In (-S) |
| Ağ | ||
| Protokoller: | | | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Güvenlik: | | | One-key recovery, flash-prevention, three streams, heartbeat, mirror, password protection, video mask, Watermark, IP address filtering, Anonymous access |
| Sistem Uyumluluğu: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Arayüzü | ||
| İletişim Arayüzü: | | | 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface (-S) |
| Alarm: | | | With –S model: 1 input, 1 output (up to DC24V 1A or AC110V 500mA) |
| Video Çıkışı: | | | 1Vp-p Composite Output (75 Ω, BNC) |
| Dahili Depolama: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Butonu: | | | Yes |
| Ses | ||
| Çevre Gürültü Filtreleme: | | | Support |
| Ses I / O: | | | Support dual audio track, stereo |
| Ses Örnekleme Hızı: | | | 16kHz / 32kHz / 44.1kHz / 48kHz |
| Akıllı Özellik-set | ||
| Davranış Analizi: | | | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal |
| Sınır İhlali: | | | Cross a pre-defined virtual line |
| Saldırı Algılama: | | | Enter and loiter in a pre-defined virtual region |
| Bölge Giriş: | | | Enter a pre-defined virtual region from the outside place |
| Bölge Çıkma: | | | Exit from a pre-defined virtual region |
| Bırakılan Eşya: | | | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Alınan Eşya: | | | Objects removed from the pre-defined region, such as the exhibits on display. |
| Genel | ||
| Çalışma Sıcaklığı: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| GÜç Tüketimi: | | | 12 V DC ± 20%: Max. 11.25 W/0.94 A PoE (802.3at): Max. 15 W/0.31 A |
| Weather Proof: | | | IP67 |
| IR Aralık: | | | Approx. 10 to 30 meters |
| Boyutlar: | | | 348.38 × 114.18 ×111.73 mm (13.72″ × 4.5″ × 4.4″) |
| Ağırlık: | | | Camera: 1900 g (4.19 lb.) With package: 2100 g (4.63 lb.) |
| Kurulum Dosyaları |
|---|
