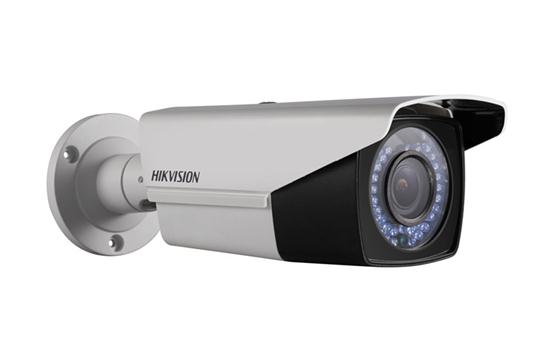

DS-2CE16D5T-AIR3ZH – HD1080P WDR Motorized Vari-focal IR Bullet Camera
| Kamera | ||
|---|---|---|
| Görüntü Sensörü: | | | 2MP CMOS Image Sensor |
| İşaret Sistem: | | | PAL/NTSC |
| Etkin Piksel: | | | 720(H)×480(V) |
| Minimum Aydınlatma: | | | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR |
| Objektif Zamanı: | | | 1/25(1/30) s to 1/50,000 s |
| Lens: | | | 2.8-12mm @ F1.4 Angle of view: 103° – 32.1° |
| Lens Montaj : | | | φ14 |
| Ayarlama Aralık: | | | Pan: 0 – 360°, Tilt: 0 – 90°, Rotation: 0 – 360° |
| Gündüz ve Gece: | | | IR cut filter with auto switch |
| Geniş Dinamik Aralık: | | | 75dB |
| Video Çerçeve Hızı: | | | 1080p@25fps/1080p@30fps |
| HD Video Çıkışı: | | | 1 Analog HD output |
| Senkronizasyon: | | | Internal Synchronization |
| CVBS Çıkışı: | | | 1Vp-p Composite Output(75Ω/BNC) |
| S / N Oranı: | | | More than 62 dB |
| Coax üzerinden: | | | Support |
| Menü | ||
| Kamera ID: | | | On/off (15 characters, position programmable) |
| Otomatik Beyaz Dengesi: | | | ATW/ AWC-SET/ Indoor/ Outdoor/ Manual |
| Gizlilik Maskesi: | | | On/Off, maximum 8 zones |
| Hareket Algılama: | | | On/Off, maximum 4 zones |
| BLC: | | | On/Off |
| AGC: | | | Support |
| Anti-flicker: | | | On/ Off |
| Dil: | | | English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic |
| Fonksiyon: | | | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
| Alan: | | | Indoor, Outdoor, Indoor1, LOW-LIGHT |
| Genel | ||
| Çalışma Sıcaklığı: | | | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Güç Kaynağı: | | | 24 V AC ± 10%, 12 V DC ± 10% (-C series support 100 – 240 V AC) |
| Güç Tüketim: | | | Max. 12W |
| Weather Proof: | | | IP66 |
| Isıtıcı: | | | Support |
| IR Aralık: | | | Up to 40m |
| Communication : | | | Up the coax Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output) |
| Boyutlar: | | | 92 × 84.8 × 269.6mm(3.62” × 3.34” × 10.6”) |
| Ağırlık: | | | 690g (1.52 lbs) |
| Kurulum Dosyaları |
|---|
