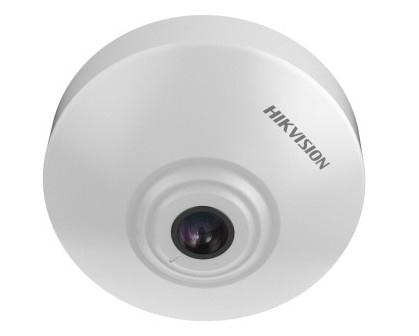

iDS-2CD6412FWD/C –
| Kamera | ||
|---|---|---|
| Görüntü Sensörü: | | | 1/3″ Progressive Scan CMOS |
| Minimum Aydınlatma: | | | Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON) B/W: 0.001 Lux @ (F1.2, AGC ON), 0.0028 Lux @ (F2.0, AGC ON) |
| Objektif Hızı: | | | 1/1s ~ 1/100,000s |
| Slow shutter: | | | Support |
| Lens: | | | 2.1mm/F2.2, horizontal FoV: 115ºor 2.8mm/F2.0, horizontal FoV: 92.5º |
| Lens Cable Length: | | | 2 meters, 8 meters optional |
| Gündüz & Gece: | | | Electronic |
| Geniş Dinamik Aralık: | | | 120 dB |
| Dijtal Gürültü Azaltma: | | | 3D DNR |
| Sıkıştırma Standardı | ||
| Video Sıkıştırma: | | | H.264/MPEG4/MJPEG |
| H.264 Türü: | | | Baseline Profile / Main Profile / High Profile |
| Video Bit Hızı: | | | 32Kbps~16Mbps |
| Ses Sıkıştırma: | | | G.711/G.722.1/G.726/MP2L2 |
| Ses Bit Hızı: | | | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Görüntü | ||
| Maksimum Çözünürlük: | | | 1280×960 |
| Çerçeve Hızı: | | | 50Hz: 25fps(1280 x 960), (1280 x 720) 60Hz: 30fps (1280 x 960), (1280 x 720) |
| Ana Akış: | | | 25/30fps (VGA, 4CIF, CIF) |
| Üçüncül Akış: | | | 50Hz: 25fps(1280 x 960) 60Hz: 30fps (1280 x 960) |
| Görüntü Ayarlama: | | | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC: | | | Yes, zone configurable |
| HLC: | | | Yes |
| Akıllı Buğu Giderme: | | | Yes |
| EIS: | | | Yes |
| ROI: | | | 4 fixed regions can be set or dynamic analysis |
| Resim Yerleşimi: | | | LOGO picture can be overlaid on video with 128×128 24bit bmp format |
| Gündüz / Gece Anahtarı: | | | Auto/Schedule/Triggered by Alarm In |
| Ağ | ||
| Ağ Depolama: | | | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger: | | | Intrusion detection, audio exception detection, defocus detection, motion detection, face detection, dynamic analysis, tampering alarm, network disconnect, IP address conflicts, storage exception |
| Protokoller: | | | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Güvenlik: | | | One-key recovery, flash-prevention, three streams, heartbeat, mirror, password protection, video mask, Watermark, IP address filtering, Anonymous access |
| Sistem Uyumluluğu: | | | ONVIF, PSIA, CGI, ISAPI |
| Intelligent | ||
| People Counting: | | | People entering and exiting data can be accounted, displayed and exported People counting data can be displayed on screen in real time and exported day/week/month/year excel chart (with SD card/NAS/Storage Server/Platform) |
| Arayüzü | ||
| Ses: | | | 1 x 3.5mm audio input (Mic in / Line in) / output external interface |
| İletişim Arayüzü: | | | 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface |
| Alarm: | | | 1 Input/1 Output |
| Genel | ||
| Çalışma Sıcaklığı: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Güç Kaynağı: | | | 12VDC ± 10% |
| GÜç Tüketimi: | | | People counting data can be displayed on screen in real time and exported day/week/month/year excel chart (with SD card/NAS/Storage Server/Platform) |
| Boyutlar: | | | Main unit: 107.6mm x 78mm x 33.5mm Lens: 48.7mm x 30.7mm x 31.5mm Lens cover : Φ95 x 31.5mm |
| Ağırlık: | | | 615g (with 2 meters cable) or 770g (with 8 meters cable) |
| Kurulum Dosyaları |
|---|
