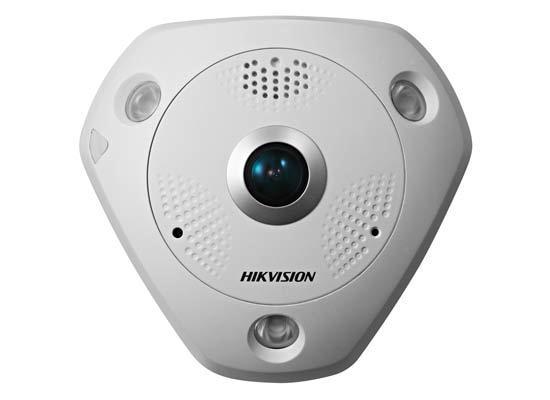

DS-2CD6362F-I(V)(S) – 6MP Fish-eye Network Camera
| Kamera | ||
|---|---|---|
| Görüntü Sensörü: | | | 1/1.8″ Progressive Scan CMOS |
| İşaret Sistemi: | | | PAL/NTSC |
| Minimum Aydınlatma: | | | 0.05 Lux @(F1.2,AGC ON), 0.3Lux @ (F2.0,AGC ON ), 0 lux with IR |
| Objektif Hızı: | | | 1/25(1/30) s to 1/100,000 s |
| Lens: | | | 1.27mm, F2.8 Angle of view: 180°(wall mount), 360°(ceiling mount) |
| Gündüz & Gece: | | | IR cut filter with auto switch |
| Geniş Dinamik Aralık: | | | Digital WDR |
| Dijtal Gürültü Azaltma: | | | 3D DNR |
| Sıkıştırma Standardı | ||
| Video Sıkıştırma: | | | H.264/MJPEG |
| Video Bit Hızı: | | | 32Kbps~16Mbps |
| Ses Sıkıştırma: | | | G.711/G.722.1/G.726/MP2L2 |
| Çift Akış: | | | Yes |
| Görüntü | ||
| Maksimum Çözünürlük: | | | 3072 x 2048 |
| Çerçeve Hızı: | | | Mode1 50Hz: 1×fisheye (1280×1280, 12.5fps), 1×panoramic (2048×1536, 12.5fps), 3×PTZ (1024×768, 12.5fps) 60Hz: 1×fisheye (1280×1280, 15fps), 1×panoramic (2048×1536, 15fps), 3×PTZ (1024×768, 15fps) Mode2 50Hz: 1×fisheye (3072×2048/2048×2048, 25fps) or 4×PTZ (1024×768, 25fps) 60Hz: 1×fisheye (3072×2048, 25fps/2048×2048, 30fps) or 4×PTZ (1024×768, 30fps) Mode3 50Hz: 1×Fisheye(2048×2048, 12.5fps; 1024×1024, 25fps) + 1×Fisheye(720×720, 12.5fps) + 3×PTZ(1024×768, 12.5fps) 60Hz: 1×Fisheye(2048×2048, 15fps; 1024×1024, 25fps) + 1×Fisheye(720×720, 15fps) +3×PTZ(1024×768, 15fps) Mode4 50Hz:1×Panorama(2048×1536(ceiling or table)/1920×1080(ceiling or table) /2048×1536 (wall mount)/2048×768(wall mount), 25fps) + 1×Panorama(704×576, 25fps) 60Hz:1×Panorama(2048×1536(ceiling or table)/1920×1080(ceiling or table)/ 2048×1536(wall mount)/2048×768(wall mount), 30fps) + 1×Panorama(704×576, 30fps) |
| Görüntü Ayarlama: | | | Saturation, brightness, contrast adjustable through client software or web browser |
| ROI: | | | Support |
| Ağ | ||
| Ağ Depolama: | | | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger: | | | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protokoller: | | | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| Güvenlik: | | | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| Sistem Uyumluluğu: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Arayüzü | ||
| Ses: | | | Internal Microphone and Speaker |
| İletişim Arayüzü: | | | 1 RJ45 10M / 100M Ethernet interface |
| Dahili Depolama: | | | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB |
| Reset Butonu: | | | Yes |
| Genel | ||
| Çalışma Sıcaklığı: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Güç Kaynağı: | | | 12 VDC ± 10%, PoE (802.3af) |
| GÜç Tüketimi: | | | Max. 12 W |
| Darbe Koruma: | | | IEC60068-2-75Eh, 50J; EN50102, IK10 |
| Weather Proof: | | | IP66 |
| IR Aralık: | | | 15 meters |
| Boyutlar: | | | 164×152.8×43.8mm(6.46”x6.02”x1.72”) |
| Ağırlık: | | | 1400g |
| NOT: | | | * “-S” series support 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface |
| Kurulum Dosyaları |
|---|
