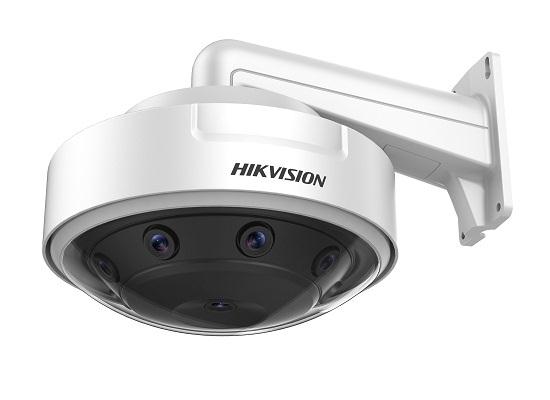

DS-2DP1636-D –
| Panoramic Camera | ||
|---|---|---|
| Image Sensor: | | | 1/1.9’’ Progressive Scan CMOS |
| Angle of View: | | | Horizontal angle of view: 360°, Vertical angle of view: 180° |
| Main Stream: | | | 50Hz: 25fps 2×(2400×3840, 1792×2880, 1600×2560, 1200×1920) 60Hz: 25fps 2×(2400×3840, 1792×2880, 1600×2560, 1200×1920) |
| Sub Stream: | | | 50Hz: 25fps 2×(320×512, 480×720) 60Hz: 25fps 2×(320×512, 480×720) |
| Third Stream: | | | 50Hz: 25fps 2×(2400×3840, 1200×1920) 60Hz: 25fps 2×(2400×3840, 1200×1920) |
| Image Compression: | | | H.264(Baseline, Main, High Profile)/MJPEG |
| HLC: | | | support |
| Day& Night: | | | ICR |
| Alarm | ||
| Alarm I/O: | | | 7/2 |
| Alarm Action: | | | Preset / Patrol / Pattern / SD card recording/ Aux output/ E-map on Client/ Send Email/ Upload to FTP |
| Input & Output | ||
| Audio Input: | | | 1 Mic in/Line in interface, line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% |
| Audio Output: | | | 1 Audio output interface, line level, impedance: 600Ω |
| Network | ||
| Audio compression: | | | G.711ulaw/G.711alaw/G.722/G.726/MP2L2/PCM |
| System Integration | ||
| Menu: | | | English |
| User/Host Level: | | | Up to 32 users,3 Levels: Administrator, Operator and User |
| Security Measures: | | | User authentication (ID and PW); Host authentication (MAC address); IP address filtering |
| Web Browser: | | | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language |
| Fiber Cable: | | | 1 10M/100M FC interface, TX1310 / RX1550nm wavelength, 20 km transmission distance |
| Ethernet: | | | 1 RJ45 100M/1000M Ethernet interface |
| RS485: | | | Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Onboard Storage: | | | Built-in Micro SD/SDHC /SDXC card slot, up to 128GB, manual/alarm recording |
| General | ||
| Power supply: | | | DC 36V |
| Consumption (without hard disk): | | | MAX. 110W (Heater: 44W) |
| Working temperature: | | | -40 °C – 65 °C |
| Working humidity: | | | Humidity 90% or less |
| Protection Level: | | | IP66 standard, TVS 6,000V lightning protection, surge protection and voltage transient protection |
| Dimensions (W×D×H): | | | Φ274.9 × 250.3 |
| Weight: | | | 4.5kg |
